Fork the IDE

Build your own SDK with CBI

Created by Thanh Ha / @zxiiro

Agenda

  • Requirements
  • Where to get the code?
  • Building Eclipse SDK
  • Contributing to the Eclipse SDK
  • Submitting a patch

Requirements

  • Java SDK
  • Apache Maven
  • Git

Where to get the code?

  • cGit
  • Gerrit

cgit

https://git.eclipse.org/c/

  • Browse codebase
  • Look for README or CONTRIBUTING

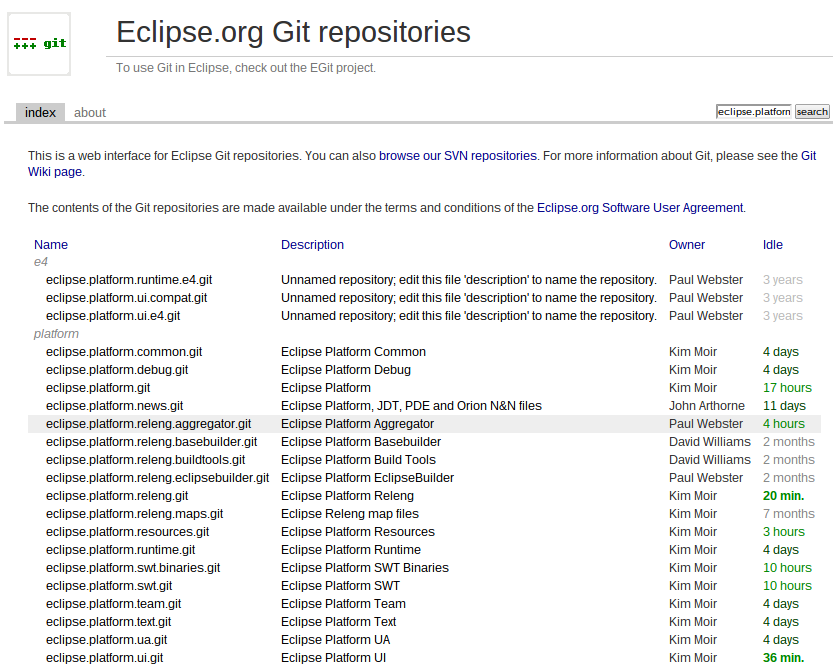

cGit Preview

https://git.eclipse.org/c/

Gerrit

https://git.eclipse.org/r/

  • Submit and Review patches
  • Prefer Gerrit URLs

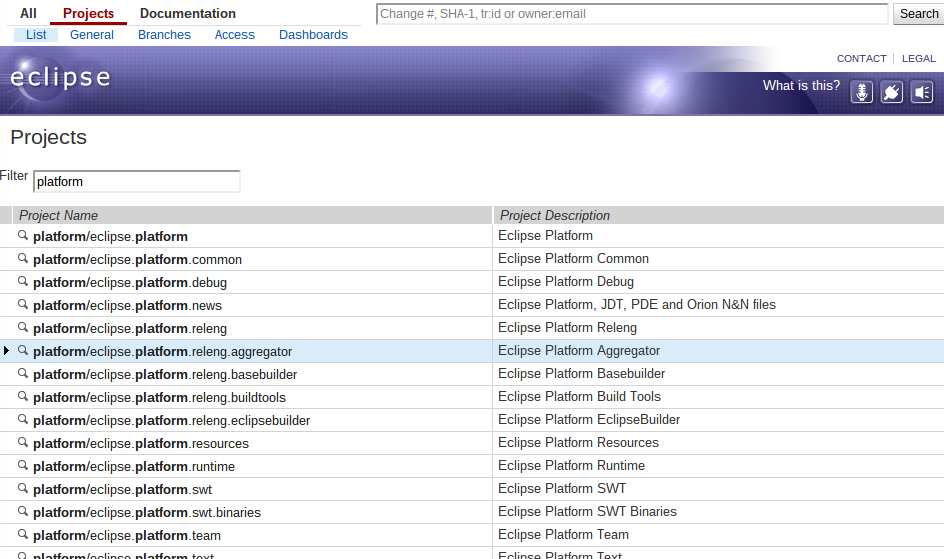

Gerrit Preview

https://git.eclipse.org/r/

Getting a copy of the code

Cloning code


git clone --recursive ssh://git.eclipse.org:29418/platform/eclipse.platform.releng.aggregator

# If you forgot --recursive

git submodule init
git submodule update


Building Eclipse SDK


mvn clean verify

# for some projects

mvn clean verify -f parent/pom.xml


Building a single component


mvn clean verify -P build-individual-bundles

# OR

mvn clean install -P build-individual-bundles


Platform Repository Overview

Submodules

  • Equinox
  • JDT
  • PDE
  • Platform

Equinox

  • rt.equinox.binaries
  • rt.equinox.bundles
  • rt.equinox.framework
  • rt.equinox.p2

JDT

  • eclipse.jdt
  • eclipse.jdt.core
  • eclipse.jdt.core.binaries
  • eclipse.jdt.debug
  • eclipse.jdt.ui

PDE

  • eclipse.pde
  • eclipse.pde.build
  • eclipse.pde.ui

Platform

  • eclipse.platform
  • eclipse.platform.common
  • eclipse.platform.debug
  • eclipse.platform.resources
  • eclipse.platform.runtime
  • eclipse.platform.swt
  • eclipse.platform.swt.binaries
  • eclipse.platform.team
  • eclipse.platform.text
  • eclipse.platform.ua
  • eclipse.platform.ui

SDK Output

eclipse.platform.releng.tychoeclipsebuilder

sdk/target/products

Updating your repositories


# Cleanup first
git clean -fdx
git checkout -f
git submodule foreach git clean -fdx
git submodule foreach git checkout -f

# Fetch new code
git pull
git submodule update


Contributing to the Eclipse SDK

Requirements

  • eclipse.org account
  • Signed CLA

Creating eclipse.org account

  1. Go to http://bugs.eclipse.org
  2. Click "Create a New Account"
  3. Enter your details
  4. Respond to confirmation email

Signing your CLA

  1. Go to http://projects.eclipse.org
  2. Click "Eclipse Login" (Top right)
  3. Enter your details
  4. Click "Continue"
  5. Click "Contributor License Agreement" tab

Note: CLA could take up to ~10 minutes to sync

Submitting a Patch to Gerrit

  • _Always_ create a new branch for your work
  • Only 1 commit per branch / patch
  • Amend commit for changes to your patch
  • Rebase before pushing

git fetch
git rebase origin/master
git push origin HEAD:refs/for/master

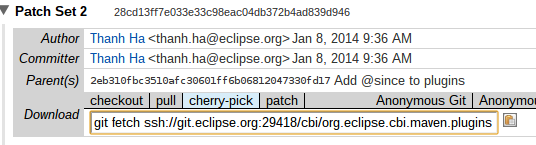

Pulling a Patch from Gerrit

  • checkout
  • cherry-pick

Where to get help

cbi-dev mailing list

https://dev.eclipse.org/mailman/listinfo/cbi-dev

Questions?
